True four-sided Packaging Machine-Double Seal

Product Model｜ Model-867

Product Feature

Fully gear of mechanical drive principal, with high stability and durability.
All components in direct contact with product are made of stainless steel and P.P material, conforming to sanitary standards.
With food grade lubricating oil for internal gears.
The air compressor system is made by BOSCH Rexroth, three-point combination, electromagnetic valve imported from Germany.
Incorporated three-way full-bore threaded-ends stainless steel ball valve-OMOL imported from Italy, the valve body is made of 316L (-20 to +160 degrees).
All components in direct contact with product especially inner part of PISTON measurement filling are made from SS316L and food grade material. Equipped with easy opening device.
Equipped with a product counting device.

Product Specification

Specification

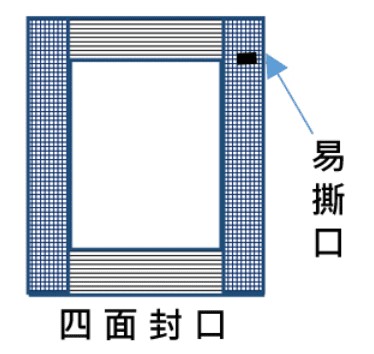

Packing Type	Four Side Seal
Packing Weight	5-80g/bag (Other size can be made upon order.)
Bag Length	L:50, 75, 80, 90, 100, 120, 150, 180, 200 mm (Designed according to customer order requirements, the machine cannot be adjusted after leaving the factory!!!))
Bag Width	W:30-80 mm
Packaging Speed	10-40 Bags (Depending on the liquidity, capacity, packaging size and film.)
Film Material	Various heat sealable materials (such as plastic film, aluminum foil + PE, NY+LLDPE…etc.)
Machine Dimension	120(L) 70(W)170(H)
Net Weight	200 kg
Electrical Requirements	1-Phase, AC 220V, 50-60Hz
Air Pressure	4 Bar

Packing Type Four Side Seal
Packing Weight 5-80g/bag (Other size can be made upon order.)
Bag Length L:50, 75, 80, 90, 100, 120, 150, 180, 200 mm (Designed according to customer order requirements, the machine cannot be adjusted after leaving the factory!!!))
Bag Width W:30-80 mm
Packaging Speed 10-40 Bags (Depending on the liquidity, capacity, packaging size and film.)
Film Material Various heat sealable materials (such as plastic film, aluminum foil + PE, NY+LLDPE…etc.)
Machine Dimension 120(L) 70(W)170(H)
Net Weight	200 kg
Electrical Requirements 1-Phase, AC 220V, 50-60Hz
Air Pressure	4 Bar

Option

Date coding (hot stamp, inkjet or thermal transfer)
Air Compressor 2HP
Overseas special specifications (compliance with CE)
